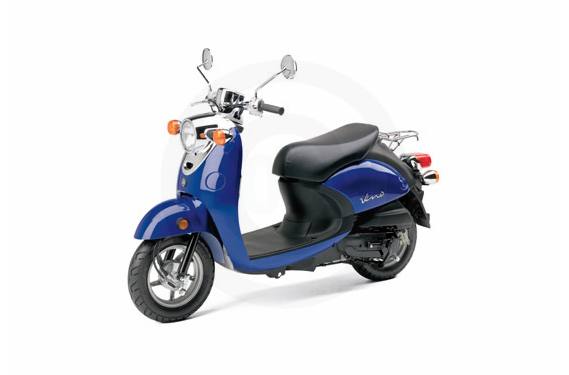

2009 Yamaha Vino 50

Now until September 30, 2010
$600.00 Off MSRP
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Fashionable Fun.


The fashionable and fun loving Vino sports a clean, quiet, fuel efficient 4-stroke engine.


The gas sipping Vino is ready to zip you around town with its environmentally friendly 49cc, 4-stroke powerplant. Whether you are looking for a fun, affordable way to commute or just looking to make a personal statement, the stylish Vino 50 may be the solution. Gas and go convenience meets European styling in the easy to ride, easy to own Vino.

  • Fuel Consumption: 47kpl/132mpg
  • Clean and efficient 4-stroke power
  • Under seat storage
Engine Features
  • Peppy, 49cc, liquid-cooled (with fan assist), SOHC, 3-valve, 4-stroke engine puts out lively, predictable power with incredible gas mileage. The design concept of this engine is peppy performance with low noise, low emissions, and low fuel consumption.
  • Fuel consumption of 47 kpl or 132 mpg based on a 40 km/h average speed on level ground. Your actual consumption may vary.
  • Easy, dependable electric starting with backup kick starter.
  • The cylinder features a ceramic composite coating which insures uniform heat dissipation, reduced friction and an extended service life.
  • Three valve cylinder head design utilizes two intake valves (15.5mm) and one exhaust valve (16.5mm). The dual intake valves allow more fuel and oxygen to enter the engine for increased power output.
  • Special "carbon cutter" valve design removes any carbon build-up on the valve stem to keep the engine operating at maximum efficiency, especially when the unit is being ridden at slow speed for prolonged periods of time.
  • Roller rocker arms are used to actuate the valves. The roller rockers reduce friction and mechanical noise to a minimum for a quiet, enjoyable ride. Valve adjustment is via shims.
  • Liquid-cooling with fan assist is used to maintain stable engine temperatures even during stop and go city riding. Liquid-cooling allows for a higher state of tune for increased engine performance. The radiator is positioned longiitually in the frame next to the engine.
  • Crankcase sump-type oil delivery system is utilized. A special centrifugal oil filtering system is used. This type of oil "filter" automatically removes any particles found in the oil and never requires cleaning or maintenance.
  • Keihin NCV18 carburetor features a throttle position sensor (TPS) that is linked to the ignition system to provide crisp throttle response. The TPS system monitors the throttle opening and sends the info to the CDI to provide the optimum ignition timing for great performance. Other TPS benefits include increased fuel economy and reduced emissions.
  • Easy access, paper-type air filter is used. Total air box capacity is 2.0 liters for excellent performance and reduced intake noise.
  • Automatic choke means no choke to fuss with and makes cold starting a snap.
  • Fully automatic, V-belt centrifugal transmission ensures easy, twist-the-throttle-and-go operation. There is no clutch or gear shifting to worry about. A wide range reduction ratio is used for peppy performance.
  • Maintenance-free CDI system with 2-D mapping provides a precise, high-voltage spark for fast starts and crisp engine performance at all rpms.
  • Air induction system (AIS) is used to reduce harmful exhaust emissions. The AIS system injects oxygen into the exhaust port area to ensure complete fuel combustion, thereby reducing both hydrocarbon (HC) and carbon monoxide (CO) emissions.
  • Exhaust system and muffler produce a very quiet environmentally friendly exhaust note. The muffler features a catalytic coating to further reduce harmful exhaust emissions.
Chassis/Suspension Features
  • Rugged, step-through, underbone-style, steel-tube frame design provides stable, predictable handling. The step-through design means it is very easy to get on and off the Vino.
  • Telescopic front fork provides a comfortable around town ride.
  • Single-shock rear suspension provides a plush, comfortable ride.
  • Front and rear 110mm drum brakes supply strong, reliable stopping power. They are hand operated, for ease of use …. just like on a bicycle !
  • Rugged yet lightweight, die cast aluminum 5-spoke mag style wheels are fitted with 10" tubeless tires.
  • Comfortable "saddle-type" single seat ensures excellent rider comfort and adds unmistakable style.
  • Super convenient, large, 20 liter locking, under seat storage compartment can easily hold a full-face helmet or other items like a small briefcase or purse. Maximum capacity is 5 kilograms
  • Large 4.5 liter fuel tank means lots and lots of kilometers between fill-ups. Locking fuel cap provides peace of mind.
  • 35/35-watt multi-cut lens headlight maximizes nighttime visibility and enhances retro styling. The headlight and turn signals are chromed for an added styling highlight.
  • Full-size floorboards and wide, stylish front apron provide excellent splash and wind protection and highlights that retro European styling.
  • Eye catching, chromed speedometer assembly features an integrated electric fuel gauge. Large size digits are very easy to read. Other functions include high beam indicator light, turn signal indicator lights and coolant temperature warning light.
  • Ultra convenient, key operated main ignition switch serves a number of purposes. Not only does it control the ignition, but is also opens the seat (including helmet storage), and locks the steering
  • Unique "G-Lock" anti-theft rear wheel locking system. There is a small lever beside the ignition switch that when moved to the lock position, not only prevents the rear wheel from turning but also slides a cover over the key slot of the ignition switch. It is similar to shifting the transmission on an automatic car into park.
  • Rugged chromed rear rack adds additional carrying capacity. Maximum capacity is 3 kgs.
Details
  • Electronic fuel gauge lets rider keep track of fuel level.
  • Push-to-cancel-type turn signals enhance ease of use.
  • Easy-to-use centre stand
  • Low-maintenance, sealed battery
  • Locking fuel cap and steering
  • Heat shield on muffler
  • Flexible turn signals that resist damage
  • Front and rear side reflectors help maximize conspicuity in city traffic.
  • Additional helmet or luggage hook near the ignition switch area
  • High quality 3-D Vino logos on side covers
  • Chromed headlight, turn signals and rear carrier
Engine Specifications
  • Engine: 4-stroke, liquid cooled (with fan assist), SOHC, 3-valve, single
  • Displacement: 49 cc
  • Compression Ratio: 12:1
  • Maximum Torque: 0.47 kg-m (3.4 ft-lb) @ 6,000 rpm
  • Fuel Delivery: Keihin NCV18
  • Ignition: CDI
  • Transmission: Fully automatic
  • Drive Train: Belt/spur gear
Chassis Specifications
  • Suspension (Front): Telescopic fork
  • Suspension (Rear): Single shock unit swingarm
  • Brakes (Front): Drum
  • Brakes (Rear): Drum
  • Tires (Front): 90/90-10
  • Tires (Rear): 90/90-10
Critical Data
  • Length: 1,665 mm (65.6'')
  • Width: 630 mm (24.8'')
  • Height: 1,005 mm (39.6'')
  • Wheelbase: 1,160 mm (45.7'')
  • Seat Height: 715 mm (28.1'')
  • Fuel Capacity: 4.5 litres (1 imp. gallons)
  • Wet Weight: 80 kg (176 lbs)
  • Colour(s): Dark Metallic Blue, Metallic White
NOTES:

Specifications, appearance, and price of product are subject to change without notice.


Your actual consumption may vary. Fuel consumption figures based on 40km/h speed on level ground.


Specifications

Engine
Engine Type 4-stroke, SOHC, 3-valve, single
Displacement 49 cc
Cooling Liquid cooled (with fan assist)
Compression Ratio 12:1
Fuel System Keihin NCV18
Ignition CDI
Chassis
Front Suspension Telescopic fork
Front Brakes Drum
Front Tire 90/90-10
Rear Suspension Single shock unit swingarm
Rear Brakes Drum
Rear Tire 90/90-10
Storage 20 l locking, underseat storage compartment
Dimensions
Dry Weight Wet Weight: 176 lbs (80 kg)
Fuel Capacity 1 gal (4.5 l)
Wheelbase 45.7 in. (1,160 mm)
Seat Height 28.1 in. (715 mm)
Transmission
Transmission Fully automatic
Drive System Drive Train: Belt/spur gear
General
Speedometer Standard
Colors Dark Metallic Blue, Metallic White

Compare Models

 Print








Year 2009
Manufacturer Yamaha
Model Vino 50
Style Standard
MSRP* $2,999.00
Chassis
Front Suspension Telescopic fork
Front Brakes Drum
Front Tire 90/90-10
Rear Suspension Single shock unit swingarm
Rear Brakes Drum
Rear Tire 90/90-10
Storage 20 l locking, underseat storage compartment
Dimensions
Dry Weight Wet Weight: 176 lbs (80 kg)
Fuel Capacity 1 gal (4.5 l)
Wheelbase 45.7 in. (1,160 mm)
Seat Height 28.1 in. (715 mm)
Curb Weight
Engine
Engine Type 4-stroke, SOHC, 3-valve, single
Displacement 49 cc
Bore and Stroke
Cooling Liquid cooled (with fan assist)
Compression Ratio 12:1
Fuel System Keihin NCV18
Ignition CDI
General
Speedometer Standard
Tachometer
Odometer
Colors Dark Metallic Blue, Metallic White
Warranty
Transmission
Transmission Fully automatic
Drive System Drive Train: Belt/spur gear
