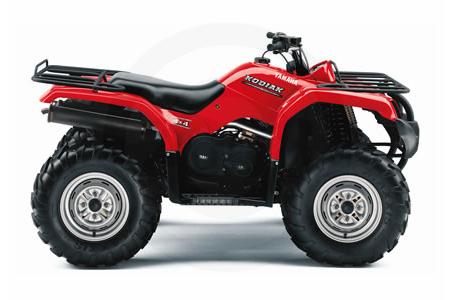

2008 Yamaha Kodiak 350

Now until September 30, 2010
$1,000.00 Off MSRP

Request a Quote Financing Calculator Financing Form

Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

Print Brochure

Feature rich for the value conscious.


Packed with features including Yamaha's bulletproof Ultramatic transmission,


Mated to our On-Command 4WD system with rider selectable push button 2WD / 4WD / Diff Lock 4WD, and a set of Maxxis tires, this little Kodiak workhorse will get the job done, with time left over for a trail ride. And with an sealed wet brake in the rear, you'll have added confidence when the weather decides not to cooperate.


ENGINE - The Kodiak 350 shares the same long lasting and well proven 348cc engine from the Bruin 350. Durable fuel efficient and versatile.


TRANSMISSION - Fully automatic transmission with engine brake for increased rider confidence, reduced brake component wear, and no freewheeling when off gas or down hills.


2WD - 4WD - On-Command 2WD / 4WD / 4WD Diff-Lock. Electronic push-button control for light 2WD steering or maximum 4WD traction.


ELECTRIC STARTER - Electric starting with recoil backup (electric starter will work in any gear)


LIGHTS - Dual 30-watt Krypton multi-reflector sealed headlights with replaceable bulbs provide excellent lighting, prevents water penetration, and simplifies maintenance and reduces cost.


FLOORBOARDS - Steel reinforced plastic floorboards with raised integrated serrated foot pegs for excellent traction regardless of conditions.


TIRES - 25-inch Maxxis tires with more aggressive tire tread pattern for greater traction and excellent durability.


BUMPER - Lower front bumper plastic skid plates. 45 degree attack angle allows unit to slide over taller obstacles without getting hung-up. Plastic design resists dents and corrosion.

  • IRS independent rear suspension, sway bar controlled. Sway bar added for limited chassis roll and great terrainability.
  • Spin-on oil filter simplifies oil changes.
  • High-positioned carb air intake and clutch intake and exhaust vents prevent water from entering carb or V-belt cover.
  • Grizzly type styling with new fenders and bumper. Excellent mud and splash protection.
  • Full plastic under frame skid plate protects engine and frame from damage and allows units to slide over rocks and logs.
  • 25-inch Maxxis tires with aggressive tire tread pattern for greater traction and excellent durability.
  • Sealed marine-style electrical connectors.
  • Large-capacity racks, front and rear with crinkle coat paint process for superior corrosion resistance.
  • Steel reinforced plastic flooboards with raised integrated serrated footpegs for excellent traction regardless of conditions.
  • Handlebar-mounted choke lever that can be operated with gloves or mitts.
Specifications
  • Engine : 4-Stroke, SOHC, Single, Air/Oil Cooler w/ Fan
  • Displacement : 348 cc
  • Bore and Stroke : 83mm x 64.5mm
  • Compression Ratio : 9.20:1
  • Carburetion : Mikuni BSR33
  • Ignition : DC - CDI
  • Starting : Electric w/ Recoil Backup
  • Lubrication : wet sump
  • Oil Capacity : 3.10 L
  • Transmission : Yamaha Ultramatic V-Belt / F,N,R
  • Final Drive : shaft
  • Suspension (Front) : Double Wishbone
  • Suspension (Rear) : Double Wishbone
  • Brakes (Front) : Dual Disc
  • Brakes (Rear) : Fully Sealed , Oil Bath, Multi Disc
  • Tires (Front) : AT25x8-12
  • Tires (Rear) : AT25x10-12
  • Length : 1,995 mm (78.5")
  • Width : 1,095 mm (43.1")
  • Height : 1,120 mm (44.1")
  • Wheelbase : 1,235 mm (48.6")
  • Ground Clearance : 245 mm (9.6")
  • Seat Height : 830 mm (32.7")
  • Dry Weight : 262.4 kg (578 lb)
  • Fuel Capacity : 13.5 litres
  • Colour(s) : Dark Blue; Red; Dark Green

Specifications

Engine
Engine Type 4-Stroke, SOHC
Displacement 348 cc
Bore x Stroke 83 x 64.5 mm
Cylinders Single
Engine Cooling Air/Oil Cooler w/Fan
Starting System Ignition : DC - CDI; Starting : Electric w/ Recoil Backup
Chassis
Front Suspension Double Wishbone
Front Brake Type Dual Disc
Front Tires AT25x8-12
Rear Suspension Double Wishbone
Rear Brake Type Fully Sealed , Oil Bath, Multi Disc
Rear Tires AT25x10-12
Dimensions/Capacities
Dry Weight 262.4 kg (578 lbs.)
Fuel Capacity 13.5 l
Ground Clearance 245 mm (9.6 in.)
Machine Dimensions (LxWxH) 1995 x 1095 x 1120 mm (78.5" x 43.1" x 44.1")
Wheelbase 1,235 mm (48.6 in.)
Drive Train
Final Drive Shaft
Transmission Yamaha Ultramatic V-Belt / F,N,R
General
Colors Dark Blue; Red; Dark Green

Compare Models

Print








Year 2008
Manufacturer Yamaha
Model Kodiak 350
Style Utility
MSRP* $7,899.00
Chassis
Front Suspension Double Wishbone
Front Travel
Front Brake Type Dual Disc
Front Tires AT25x8-12
Rear Suspension Double Wishbone
Rear Travel
Rear Brake Type Fully Sealed , Oil Bath, Multi Disc
Rear Tires AT25x10-12
Frame
Dimensions/Capacities
Dry Weight 262.4 kg (578 lbs.)
Front Rack Capacity
Rear Rack Capacity
Towing Capacity
Fuel Capacity 13.5 l
Ground Clearance 245 mm (9.6 in.)
Machine Dimensions (LxWxH) 1995 x 1095 x 1120 mm (78.5" x 43.1" x 44.1")
Wheelbase 1,235 mm (48.6 in.)
Drive Train
Drive Train
Final Drive Shaft
Transmission Yamaha Ultramatic V-Belt / F,N,R
Engine
Engine Type 4-Stroke, SOHC
Displacement 348 cc
Bore x Stroke 83 x 64.5 mm
Cylinders Single
Engine Cooling Air/Oil Cooler w/Fan
Fuel System
Starting System Ignition : DC - CDI; Starting : Electric w/ Recoil Backup
Alternator
General
Speedometer
Tachometer
Odometer
Lighting
Colors Dark Blue; Red; Dark Green
Warranty

Current Promotions

There are currently no promotions available for this product.
