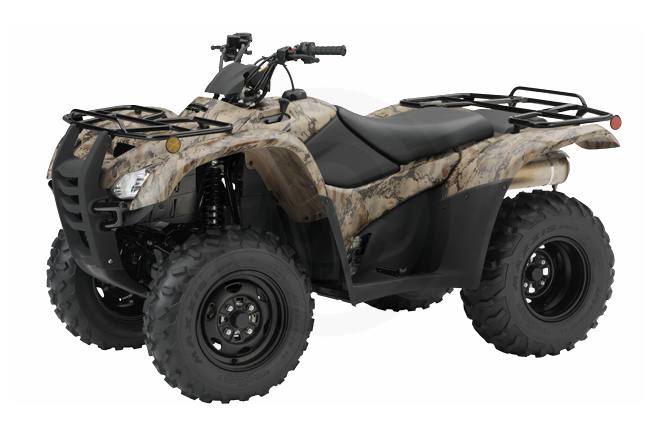

2009 Honda TRX420FPM

Now until September 30, 2010
$1,800.00 Off MSRP
Request a Quote Financing Calculator Financing Form
Click here to view full image.
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The new Honda TRX420FPM gives you the convenience and control of Electric Power Steering (EPS) in a versatile ATV that's just the right size for so many uses. Its liquid-cooled engine is fuel-injected for consistent operation in the toughest conditions, and the engine and chassis design contribute to superior balance and light weight – you'll be amazed how easily you can ride over the most rugged terrain. Looking for more? The TRX420FPM delivers with an easy-to-use 2WD/4WD shifter, front disc brakes with long-life pads and a special scraper system to prevent damage, and the option of NaturalGear ™ camo bodywork.

    Engine/Drivetrain
    • Powerful 420 cc longitudinally mounted engine eliminates 90-degree power transfers and boasts exceptional horsepower and torque.
    • Overhead-valve design provides compact engine dimensions for improved ground clearance while maintaining a broad, easy-to-use powerband.
    • Keihin fuel-injection system provides crisp performance and ensures trouble-free operation in cold conditions and changing altitudes.
    • Rubber-cushion engine mounting and gear-driven counterbalancer reduce vibration.
    • Super-heavy-duty automatic clutch with a low rpm engagement point for excellent driveability and towing capability.
    • Five-speed transmission with Reverse includes an ultra-low First gear.
    • 4WD/2WD selector lever allows 4WD when needed for the tough stuff and 2WD when conditions permit.
    • Convenient electric starting, with optional recoil starter and an automatic internal-decompression system.
    • Washable foam air filter for easy maintenance and consistent performance.
    • Stainless-steel exhaust header and muffler for superior corrosion resistance.
    • Three-chamber muffler baffling uses no packing material that can blow out. Provides long-lasting performance.
    • Full transistor ignition with electronic advance for excellent performance and reliability.
    • Powerful 343-watt AC generator.
    • Large 7.2-litre airbox with reusable foam air filter provides more air to the engine for increased performance.
    Chassis/Suspension
    • Honda's revolutionary Electric Power Steering (EPS) system monitors steering torque and vehicle speed to adjust the levels of steering assist and feel. When stopped or at low speeds, it provides more assistance for light steering effort. As speed increases, the amount of assistance is reduced to provide the appropriate level of feedback. Perhaps the most significant benefit is that the system will provide light and consistent steering feel in both 2WD and 4WD operation. As a secondary benefit, the EPS system acts as a steering damper to greatly reduce undesirable kickback through the handlebars in rough or rocky terrain, thereby helping to reduce rider fatigue.
    • Rugged frame and suspension provide an exceptional 165 mm (6.5 inches) of ground clearance.
    • Steering-mechanism design features light effort and a tight turning radius.
    • Independent double-wishbone front suspension uses premium shock absorbers to provide 160 mm (6.3 inches) of suspension travel for a plush, comfortable ride.
    • Steel swingarm and gas charged rear shock absorber provide 160 mm (6.3 inches) of suspension travel for superb comfort and compliance.
    • Tough, large-diameter 24x8-12 front, and wide 24x10-11 rear tires provide excellent ground clearance while maintaining precise handling.
    • Dual front hydraulic disc brakes and sealed mechanical rear drum brakes for strong stops.
    Additional Features
    • Engine design produces low emissions and meets EPA and California Air Resources Board (CARB) off-road emissions standards.
    • Optional waterproof accessory socket provides 12-volt, 10-amp power with a built-in temperature-type fuse.
    • Large cargo racks front and rear carry payloads of 30 kg (66 lb) and 60 kg (133 lb), respectively.
    • Heavy-duty trailer hitch with 385 kg (850 lb) towing capacity.
    • Large, lightweight plastic fuel tank with 13.3-litre capacity.
    • Snorkel-type air-intake system is specially designed to resist water.
    • Under-seat storage compartment allows access when rack is loaded.
    • Thickly padded seat provides excellent comfort.
    • Large fenders give excellent mud protection.
    • Twin-headlight system with 30-watt bulbs features multireflector lenses for optimal light distribution.
    • Combination LED stoplight and taillight.
    • Spark arrester/muffler designed for quiet operation without wool packing for long-lasting performance.
    • Constant-velocity-joint boot guards help prevent damage to boot covers.
    • Tough 12-amp-hour maintenance-free battery.
    • Durable, comfortable, easy-to-use controls.
    • Keyed ignition switch for added security.
    • Full-length synthetic lower skidplate with integrated front brush guard.
    • Easy-to-use parking brake.
    • Standard tool kit includes a tire-pressure gauge.
    • 1 year, transferable limited warranty.
    Specifications
    • Engine Type: Liquid-cooled longitudinally mounted single-cylinder four-stroke
    • Displacement: 420 cc
    • Bore & Stroke: 86.5 mm x 71.5 mm
    • Compression Ratio: 9.8:1
    • Valve Train: OHV, 2 valves
    • Fuel Delivery: PGM-FI fuel-injection
    • Transmission: Five-speed with automatic clutch, reverse and ultra-low first gear
    • Final Drive: 2WD/4WD; direct front and rear driveshafts with 2WD/4WD shifter and torque-sensing front differential
    • Front Suspension: Independent double-wishbone with hydraulic shocks; 160 mm (6.3 inches) travel
    • Rear Suspension: Swingarm with single hydraulic shock; 160 mm (6.3 inches) travel
    • Tires: 24x8 - 12 front; 24x10 - 11 rear
    • Brakes: Front dual 180 mm hydraulic discs; rear sealed mechanical drum
    • Length: 2,055 mm (80.9 inches)
    • Width: 1,172 mm (46.1 inches)
    • Ground Clearance: 165 mm (6.5 inches)
    • Seat Height: 822 mm (32.4 inches)
    • Wheelbase: 1,249 mm (49.2 inches)
    • Fuel Capacity: 13.3 litres, including 2.6-litre reserve
    • Colour: Red, Camo (optional)

    Specifications

    Engine
    Engine Type Longitudinally mounted Four-stroke, OHV, 2 valves
    Displacement 420 cc
    Bore x Stroke 86.5 x 71.5 mm
    Cylinders Single Cylinder
    Engine Cooling Liquid Cooled
    Fuel System PGM-FI fuel-injection
    Starting System Electric Start, W/Recoil Auxiliary
    Chassis
    Front Suspension Independent double-wishbone with hydraulic shocks
    Front Travel 160 mm (6.3 in.)
    Front Brake Type Dual 180 mm hydraulic discs
    Front Tires 24x8 - 12
    Rear Travel 160 mm (6.3 in.)
    Rear Suspension Swingarm with single hydraulic shock
    Rear Brake Type Sealed mechanical drum
    Rear Tires 24x10 - 11
    Dimensions/Capacities
    Fuel Capacity 13.3 l, including 2.6-l reserve
    Ground Clearance 165 mm (6.5 in.)
    Machine Dimensions (LxWxH) Length: 2,055 mm (80.9 in.); Width: 1,172 mm (46.1 in.)
    Wheelbase 1,249 mm (49.2 in.)
    Drive Train
    Final Drive 2WD/4WD; direct front and rear driveshafts with 2WD/4WD shifter and torque-sensing front differential
    Transmission Five-speed with automatic clutch, reverse and ultra-low first gear
    General
    Colors Red, Camo (optional)
    Warranty 1 Year Transferable Limited Warranty

    Compare Models

    		 Print








    Year 2009
    Manufacturer Honda
    Model TRX420FPM
    Style Utility
    MSRP* $8,599.00
    Chassis
    Front Suspension Independent double-wishbone with hydraulic shocks
    Front Travel 160 mm (6.3 in.)
    Front Brake Type Dual 180 mm hydraulic discs
    Front Tires 24x8 - 12
    Rear Suspension Swingarm with single hydraulic shock
    Rear Travel 160 mm (6.3 in.)
    Rear Brake Type Sealed mechanical drum
    Rear Tires 24x10 - 11
    Frame
    Dimensions/Capacities
    Dry Weight
    Front Rack Capacity
    Rear Rack Capacity
    Towing Capacity
    Fuel Capacity 13.3 l, including 2.6-l reserve
    Ground Clearance 165 mm (6.5 in.)
    Machine Dimensions (LxWxH) Length: 2,055 mm (80.9 in.); Width: 1,172 mm (46.1 in.)
    Wheelbase 1,249 mm (49.2 in.)
    Drive Train
    Drive Train
    Final Drive 2WD/4WD; direct front and rear driveshafts with 2WD/4WD shifter and torque-sensing front differential
    Transmission Five-speed with automatic clutch, reverse and ultra-low first gear
    Engine
    Engine Type Longitudinally mounted Four-stroke, OHV, 2 valves
    Displacement 420 cc
    Bore x Stroke 86.5 x 71.5 mm
    Cylinders Single Cylinder
    Engine Cooling Liquid Cooled
    Fuel System PGM-FI fuel-injection
    Starting System Electric Start, W/Recoil Auxiliary
    Alternator
    General
    Speedometer
    Tachometer
    Odometer
    Lighting
    Colors Red, Camo (optional)
    Warranty 1 Year Transferable Limited Warranty
